Workover XQ Tubing Power Tong Jam Unit

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Dongying Lake Petroleum Technology Co.,Ltd
[China]

Address
Huanghe Road,Dongying City,Shandong Province, 257000, China Dongying Shandong
Phone
86-546-7080020
Contact name
Grace Qi

Quick Information

  • Place of Origin: China

Description

Workover XQ Tubing power tong Jam Unit



Product Description



Main Functions and Characteristics



Elastic body torque sensor is used to measure torque.the sensor is a strain sensor,having stable zero, high precision and high anti-interference ability.

Coordinate with electromagnetic unloading valves in hydraulic power station so as to realize any automatic control of make-up torque.

High precision, high-speed optical encoder records the make-up cyclomatic number.

Display, control and record any make-up process data as well as record them at disc for query in the future.

Carry out multiple page printing. An A4 paper may be printed with one or eight figures.



Main Technical Parameters



Supply voltage: 220VAC±15%, 50~60 Hz (in recreational vehicle)

Measurement range: XQ89/3-4300 N.m

Control range: May be set.

Detection accuracy: ≤2.5%

Ambient temperature: -20℃~+65℃;

Environmental humidity: 10% to 80% RH (without any condensation).

Volume 580×450×300

Weight: 50KG (approximation)



Pictures

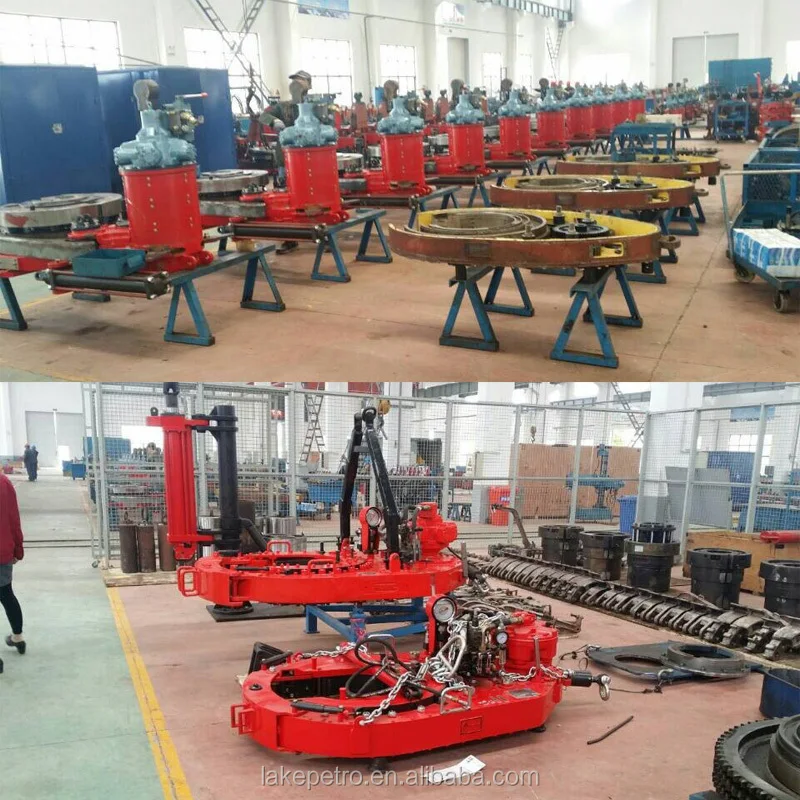

power tongs .jpg

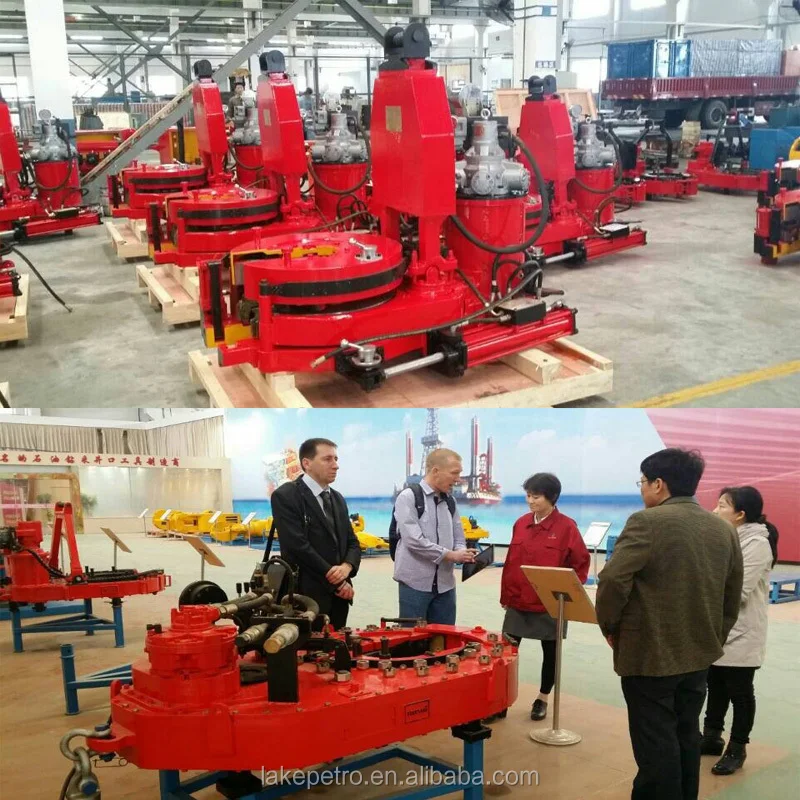

hydraulic power tong 333.jpg

casing power tong 22.jpg

Packaging & Shipping



power tong .jpg





Technical parameter

 TQ casing power tong

Model TQ178-16 TQ340-20Y TQ340-35 TQ178-16Y TQ340-35Y TQ508-70Y TQ340-50
Size rang mm 101.6-178 101.6-340 139.7-340 101.6-178 101.6-340 244.5-508 139.3-340
in 4-7 4-133/8 51/2-133/8 4-7 4-133/8 95/8-20 51/2-133/8
Hydraulic system pressure ratigin Mpa 18 16 18 18 18 20 17.2
Psi 2610 2320 2610 2610 2610 2900 2494
Hydraulic system flow ratigin L/min 114 114 114 114 114 140-220 120
gpm 30.1 30.1 30.1 30.1 30.1 36.9-58.1 31.7
Max.torque kN.m 2.4-3 3.7 2.5-3 2.4-3 4.0-5.0 8.4-10.7 4
ft.ibf 1770-2200 2730 1844-2200 1770-2200 2950-3680 6195-7891.25 2950
kN.m / / 6.0-7.5 / / / 11
ft.ibf 4420-5530 8103
kN.m 16 20 35 15-18 27-30 48.9-70 50
ft.ibf 11800 14750 25800 11060-13280 19900-22120 36063.75-51625 36851
RPM rpm 54-97 50-80 60-86 54-79 80-98 30.5-48 72.8
rpm     21-30       27.4
rpm 9-13.1 6-14 2.6-5.3 8.5-12 12-16 4.6-7.3 5.4
Overall dimensions mm 1540×760×740 1520×850×670 1540×900×860 1500×760×680 1560×900×850 2080×1280×760 1540×892×908
in 61×30×29 60×34×26 61×36×34 59×30×27 61×35×33.5 82×50×30 60×35×33
Weight Kg 580 560 780 570 780 1550 880
Ib 1280 1234 1720 1250 1720 3420 1940



ZQ drill pipe power tong

Model

ZQ203-125

ZQ203-100

ZQ203-100A

ZQ203-100B

ZQ162-50

ZQ127-25

Size rang

mm

127-203

121-203

121-203

121-203

85-162

65-127

in

3 1/2coupling

3 1/2coupling

3 1/2coupling

3 1/2coupling

2 3/8coupling

2 3/8coupling

8body

8body

8body

8body

5body

3 1/2coupling

Max.torque

kN.M

125

100

100

100

50

25

ft.lbf

92200

73750

73750

73750

36880

18440

Speed of tong Hi.

rpm

40

40

40

40

60

65

Speed of tong To.

rpm

2.7

2.7

2.7

2.7

4.1

10.5

Hydraulic system

pressure ratigin

Mpa

20

16.6

16.6

16.6

16

12

Psi

2900

2400

2400

2400

2320

1740

Hydraulic system

 pressure ratigin

L/min

114

114

114

114

120

180

gpm

30

30

30

30

32

48

Stoke of shifting

 cylinder

mm

1500

1500

1500

/

1000

1000

in

59

59

59

/

39.4

39.4

Moving distance

of tong

mm

/

/

/

0-3000

/

/

in

0-59

Lifting diatance

of tong

mm

/

/

0-485

0-1800

/

/

in

0-19

0-31.5

Overall dimensions

mm

1720×1050×1750

1700×1000×1400

1700×1000×1400

1750×1650×2050

1570×800×1190

1110×790×820

in

68×41×69

67×39×55

67×39×55

69×65×81

62×31×47

44×31×32

Weight

Kg

2600

2400

2500

3250

1500

620

Ib

5730

5290

5510

7165

3310

1360

 XYQ Tubing power tong



Model

XQ89/3YC

XQ114/6YB

XQ140/12YA



Application Range of Master Tong

Φ60~Φ89mm

Φ73~Φ114mm

Φ73~Φ140mm

Application Range of Backup Tong

Φ89~Φ114mm

Φ89~Φ141mm

Φ89~Φ154mm



High Gear Rated Torque

1100N.m

1500N.m

2600N.m



Low Gear Rated Torque

3000N.m

6000N.m

12000N.m



High Gear Rotation Speed

90 r/min

85 r/min

72 r/min



Low Gear Rotation Speed

30 r/min

20 r/min

14 r/min



Rated Operation Pressure

10 MPa

11 MPa

12 MPa



Max. Flow

80 L/min

100 L/min

120 L/min

Dimension:L×W×H mm

650×430×550

750×500×600

1024×582×539



Weight(With Backup)

158 kg

1220 kg

550 kg

Our Services



Product quality promise and after service

1. guarantee to keep the product in good repair

 We promise to the customer: this product will be repaired free of charge within 6 mouths after sale due to the problem caused by the material or manufacturering and will be reached the functions described as our catalogue in normal operation condition. but the following problem are except from :

a) the problem are caused by using the parts fabricated by other company.

b) Ang problem are caused by self -refit.

We keep our promise,but our obligation is limited to repair or change the defective products or the appointed service facilitied. The dies,Roller, Friction disc, Lubrication, Surface coating etc are except from the repairing. Our company shall not reponsible for any indirect damages resulted by other cause.

Please promptly contact with us if the quality problem are detected so that the problem can be confirmed and corrected in good time by our company or by the authorized local dealer.
