HOT SALES! API 7-1 drilling tool downhole mud motor

Product Description

1. ADVANTAGES OF DOWNHOLE MOTOR

Increased rate of penetration.

Better hole deviation control.

Reduction in drill string failure rate.

Reduction in wear and tear of the swivel, Kelly, and rotary drives.

Reduction in fuel cost, since compared to rotary drilling, less energy is required to power a downhole motor.

2. CONSTITUTION

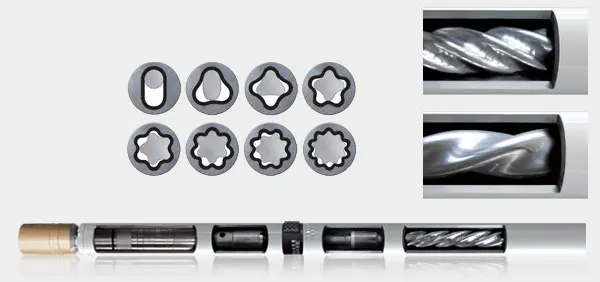

Downhole motors differ in size and performance characteristics, but they share the same basic components as follows (Fig.1) :

Crossover Sub Safety Catch Sub           Power Section         Coupling Assembly           Bearing Assembly

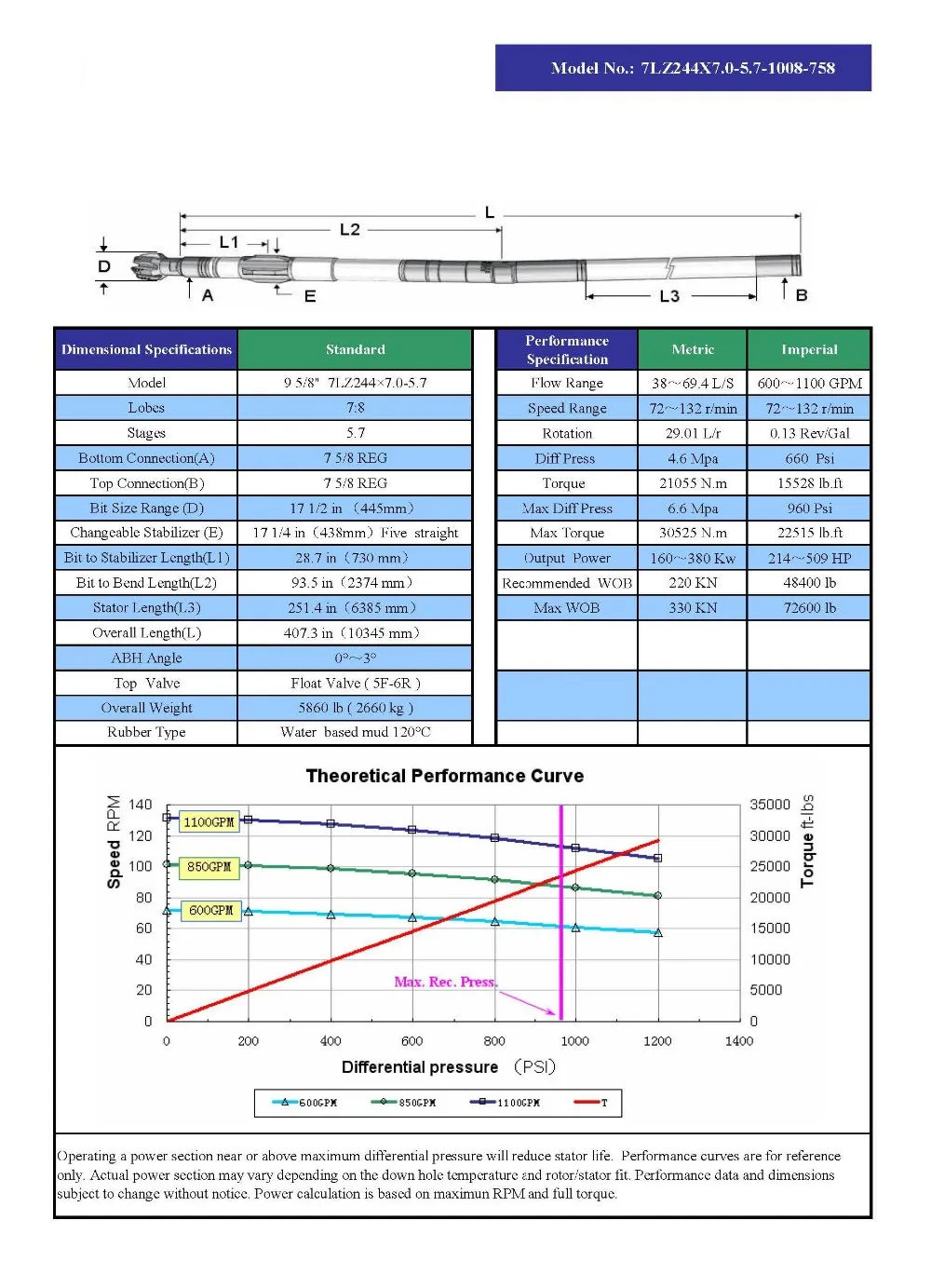

Products Drawing



Main Parameters

The Main Technical Specification of LZ Downhole Motor

Model

O.D.

Mm(in)

Hole

   Size      mm(in)

Joint Thread

API

Nominate Flowing

L/s

Bit Rotate Speed r/m

Hole

Pressre Drop

MPa

Motor Pressure Drop

MPa

Working Torque

N/m

Max. Torque

kN/m2

Nominate Weight on Bit

kN

Max. Weight on Bit

 kN

5LZ95×7

95(33/4)

118-152

(45/8-6)

27/8REG



7-16



80-200



7.0

2.4



780-1150



1710



25



50



5LZ102×7

102(4)

5LZ120×7

120(43/4)

149-200

(57/8-77/8)



31/2REG



10-16

80-160







3.2







1215-1817



2560

68



80



5LZ127×7

127(5)

5LZ165×7

165(61/2)

213-251

(83/8-97/8)





NC50 up

4 1/2REGdown



19-32

2916-3996



6800



80

160

5LZ172×7

172(63/4)

7LZ197×7

197(73/4)

251-311

(97/8-121/4)

5 1/2REG up

6 5/8REG down

32-50

80-150

4.0

6515-9215

13000

160

270

Product Overviews

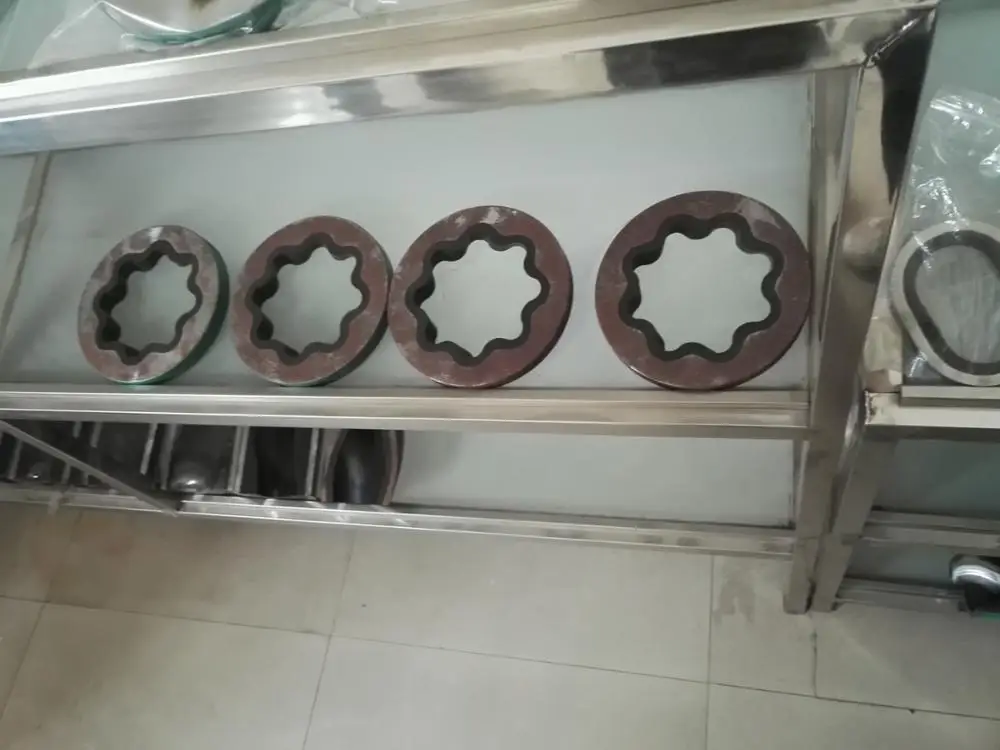

 Motor.jpgAPI 7-1 Downhole tools Downhole motor mud motor.jpgmud-motor-rotors.jpgAPI 7-1 Downhole tools Downhole motor mud motor.jpg
